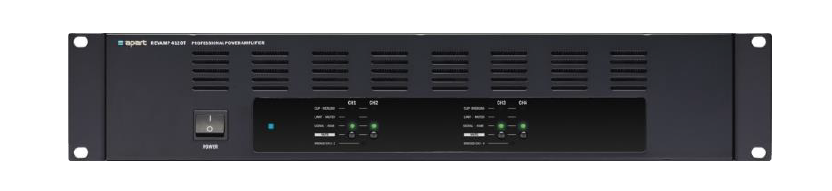

Biamp - REVAMP4120T - 19" 4-kanaals Eindversterker 120/60W 4/8Ω/100V
° RMS-vermogen: 4x 120W @ 4Ω
° RMS-vermogen: 4x 60W @ 8Ω
° RMS-vermogen: 4x 120W @ 100V
° RMS-vermogen: 2x 240W @ 8Ω brug
° RMS-vermogen: 2x 240W @ 100V brug
° Uitgangsspanning / Impedantie: 100V / 8Ω / 4Ω
° Frequentiebereik: 50 Hz - 20 kHz
Merk Naam:
Biamp
Interne referentie:
912.0656.900
Beschrijving:
REVAMP4120T is a professional 4-channel digital power amplifier with 4 x 120 watts output power @ 100 volt (or @ 4 ohms), but the unit is also bridgeable to 2 x 240 watts @ 100 volt (or @ 4 ohms). The unit incorporates a highly efficient SMPS power supply, outputs with efficient Class D output topology and output transformers.
REVAMP4120T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.
In order to match each input to its respective source the input sensitivity can be adapted to specific needs. The input stage also features a build-in 250 Hz HP-filter to optimize the system for use on horn speakers if needed. Each pair of outputs can be bridged to give you 2 x 240 watts of output power.
Specificaties
| Merk | Biamp |
| Aantal kanalen | 4 |
| Speaker Output | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Dante | Nee |
| RS232 | Nee |
