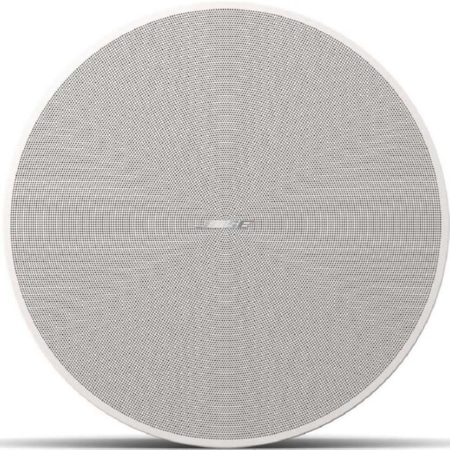

Bose DesignMax DM8C Inbouwluidspreker Wit
° 150W @ 8Ω
° Vermogenstaps @ 100V: 80/40/20/10/5 W
° Vermogenstaps @ 70V: 80/40/20/10/50/2,5 W
° Gevoeligheid 1W/1m: 91 dB
° Max. SPL: 113 dB
° Frequentiebereik -10 dB: 52 Hz - 20 kHz
Interne referentie:
802080-0210
Beschrijving:
The Bose DesignMax DM8C Built-In Speaker is a high-performance in-ceiling loudspeaker designed for commercial spaces such as restaurants, retail stores, and hospitality venues. It features a coaxial two-way driver with an 8-inch woofer and a 1-inch compression driver, delivering a frequency range of 52 Hz to 20 kHz. The DM8C provides 135° conical horizontal coverage, ensuring clear and intelligible sound throughout the space.
The loudspeaker is equipped with QuickHold spring-loaded mounting arms for easy installation and reduced strain on the ceiling structure. It also includes Euroblock connectors and front-access audio wiring for simplified installation and troubleshooting1. The DM8C is available in both black and white finishes, allowing it to blend seamlessly with any décor.
With a maximum SPL of 113 dB at 1 meter, the Bose DesignMax DM8C is built to meet the demands of high-SPL applications, providing robust sound performance in challenging environments. Its elegant design and reliable performance make it a versatile choice for any commercial audio installation.
Specificaties
| Merk | Bose |
| Kleur | Wit |
| Speaker Output | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Impedantie | 8 Ω, 100 V |
| Inbouw Afmetingen | 345 mm (Ø) |
