Audac Amplificateur Class-D seize canaux 16 x 60W - DPA616
° Stéréo @ 4 Ω : 16x60 W
° Stéréo @ 8 Ω : 16x30 W
° Pont @ 8 Ω : 8x120 W
° THD+N : <0,1%
° Signal/bruit : >100 dB
° Réponse en fréquence : 20 Hz - 20 kHz
Référence interne:
DPA616
Beschrijving:

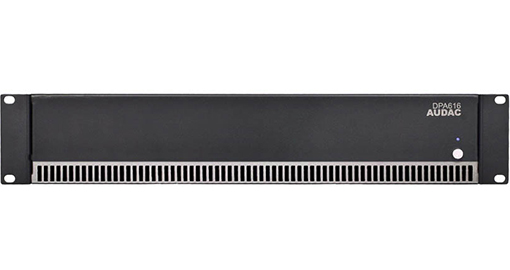

The DPA616 is a professional sixteen channel power amplifier which is capable of delivering a power of 60 Watt to 4 Ohm loads connected to the 16 output channels. When used in bridge mode, it can deliver a power of 120 Watt to 8 Ohm loads connected to the 8 bridged outputs.
This way, the DPA616 is the perfect solution for installed multi-zone audio distribution systems with 8 or 16 zones. This amplifier is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation. The input connections are all performed with 3-pin Terminal block connectors, allowing the connection of balanced input signals.
Every channel is fitted with a separate gain control potentiometer and for every two input connectors, there is a stereo / bridge & parallel switch provided whereby two channels can be bridged or linked in parallel, avoiding a cable clutter when multiple channels should be fed with the same input signal. The output connections are performed with 4-pin Terminal block connectors allowing connections for separate or bridged output channels.
A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload and limits the signal when necessary. This all is housed in a double rack space, steel 19” rack mount housing.
Spécifications
| Nombre de canaux | 16 |
| Impedance | Low Impedance (2ohm - 16ohm) |
| Dante | Nee |
| RS232 | Nee |
| Marque | Audac |
