ARES5A wall panel - Microphone & line input - 80 x 80 mm - WP205/B
° Front Finish: PMMA+ABS
° Mic input: Yes
° Line input: Yes
° Bluetooth: No
° Phantom Power: Yes
° Output level: +12 dBV
Internal Reference:
WP205/B
Beschrijving:

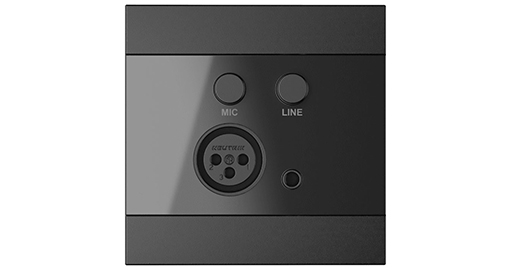

The WP205 is a remote wall mixer that is meant to be used in combination with the ARES5A active speaker system. It converts the signal coming from a stereo line-level audio source (such as a tuner, mobile devices, ... ) or balanced microphone to the level corresponding to the differential signal input on the ARES5A (RJ45) making it possible to transfer high-quality audio over long distances between the wall panel and the loudspeaker, by just using inexpensive twisted-pair CAT5e or better cabling. On the front side of the wall panel, there is a 3.5 mm jack stereo line input connection available together with a balanced XLR microphone input, both provided with their own knob which allows the signals to be mixed together.
The WP205 is available in 2 colours (White - RAL9003 & Black - RAL9005) and is compatible with most standard EU (80x80 mm) style in-wall boxes for solid and hollow walls. With the Elegant ABS front panel with Acrylic (PMMA) glass finish, it will blend into any environment.
Specifications
| Color | Black |
| Bluetooth | No |
| Brand | Audac |
| POE | No |
| Dante | Nee |
| RS232 | Nee |
