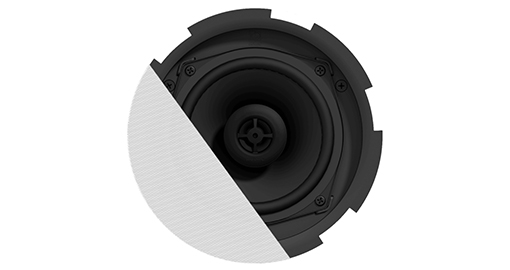

Audac QuickFit™ 5 1/4" ceiling speaker TwistFix™ White version, 8Ω & 24W@100V (RAL9016) - CIRA524I/W
° Program power: 60 W
° RMS/AES Power: 30 W
° Max SPL: 102 dB
° Sensitivity 1W/1m: 87 dB
° Power taps/Impedance: 24w/12w/6w/8 Ω
° Frequency Response +- 3dB: 60 Hz - 20 kHz
° Cut-out Dimensions: ø 170 mm
Internal Reference:
CIRA524I/W
Beschrijving:
Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W, 3W, 1.5W and an 8 Ohm or 16 Ohm bypass connection.
Specifications
| Color | White |
| Impedance | 8 ohm, 100 V |
| Impedance | Low Impedance (2ohm - 16ohm), High Impedance (70V / 100V) |
| Built-in Dimensions | 170 mm (Ø |
| Brand | Audac |
