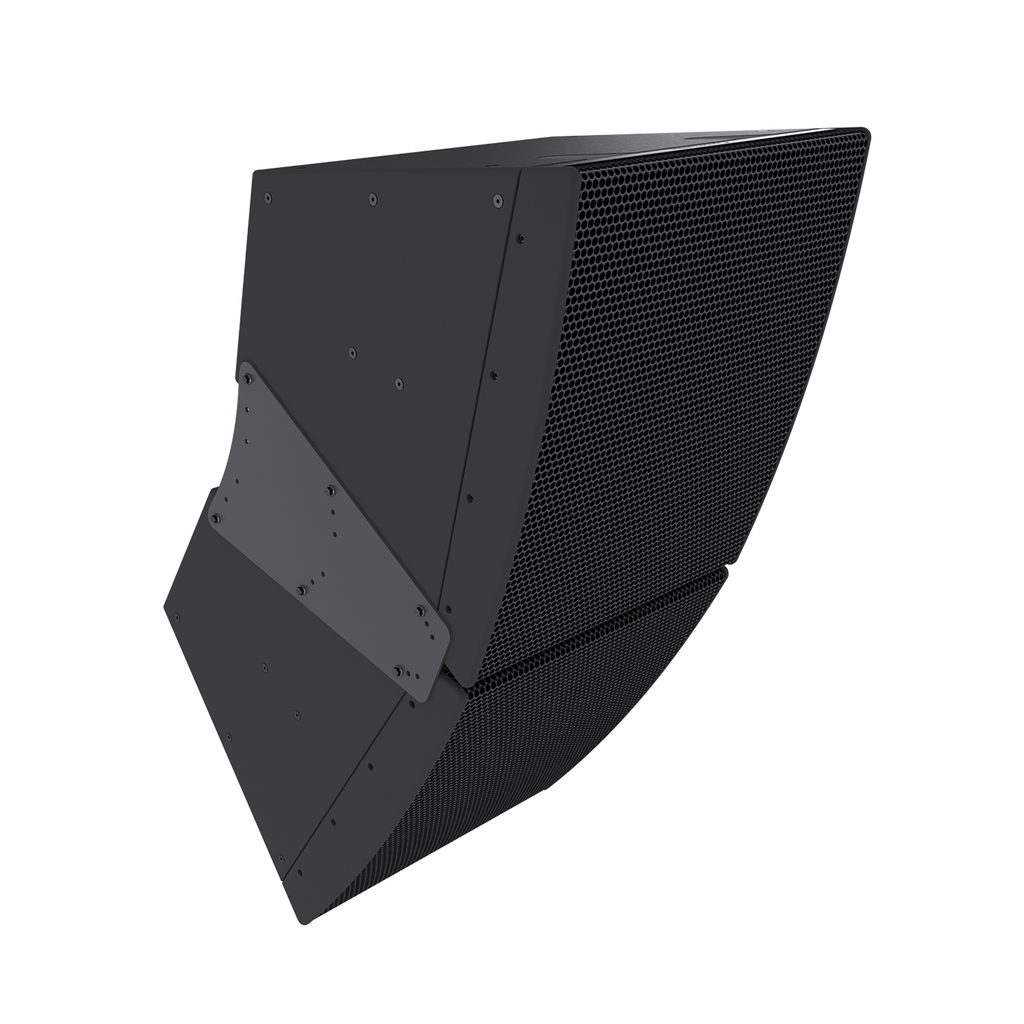

Biamp Community LVH-906/APB Beamforming Speaker Array 60° Black (per pair)

° 12" Beamforming speaker array
° Variable vertical dispersion
° LF 950W @ 8Ω
° MF 130W @ 5Ω
° HF 65W @ 8Ω
° Sensitivity (1W/1m): 91 dB
° Max SPL: 150 dB

Brand Name: Biamp
Internal Reference: 911.1778.900
Beschrijving: The Community LVH-900 Beamforming Venue Horn is a large-scale, high output, arrayable point source loudspeaker that allows designers to tailor the coverage of a single loudspeaker, dual-cabinet array, or an array of multiple loudspeakers to precisely cover any audience area with smooth, even, full-range sound distribution. LVH-900 provides the highest output, widest bandwidth, and most consistent coverage of any large format point source loudspeaker on the market. Combined with Amplified Loudspeaker Controllers (ALC), the LVH-900 is able to meet the sound requirements for music and speech reinforcement in large houses of worship, stadiums, theaters, and other large venues.

Designed for exceptional performance in large venues, the LVH-906/AP dual-cabinet array features a total of eight 12 inch LF drivers, six Community M200 midrange compression drivers, and eight 1.5 inch HF compression drivers. Using patent pending techniques, the triaxial drivers in each cabinet are integrated to create half of the desired vertical coverage pattern. Using advanced FIR techniques, the output from the two loudspeakers are seamlessly integrated into one coherent wavefront filling the entire 72x31 inch face of the array, providing pattern control to below 200 Hz.

An LVH-906/AP array offers 60 degrees of fixed horizontal dispersion, three presets for vertical dispersion beamforming, and has specialized input panels for dual-cabinet long-throw configurations. LVH-906/AP models allow DSP settings and control of individual drivers to provide uniform sound to the audience areas. Possessing advanced features, highly-focused dispersion patterns, optional weather-resistant models, and most importantly sonic excellence, all LVH-900 loudspeakers make installations not only fast and simple, but as functionally effective as possible.
