Biamp Wall Panel Volume Control for ZONE4 - ZONE4R
° Front Finish: Brushed aluminum
° Music level control
° Source selection
° Microphone mix level control
° Phantom Power: Yes
Brand Name:
Biamp
Internal Reference:
911.1514.900
Beschrijving:

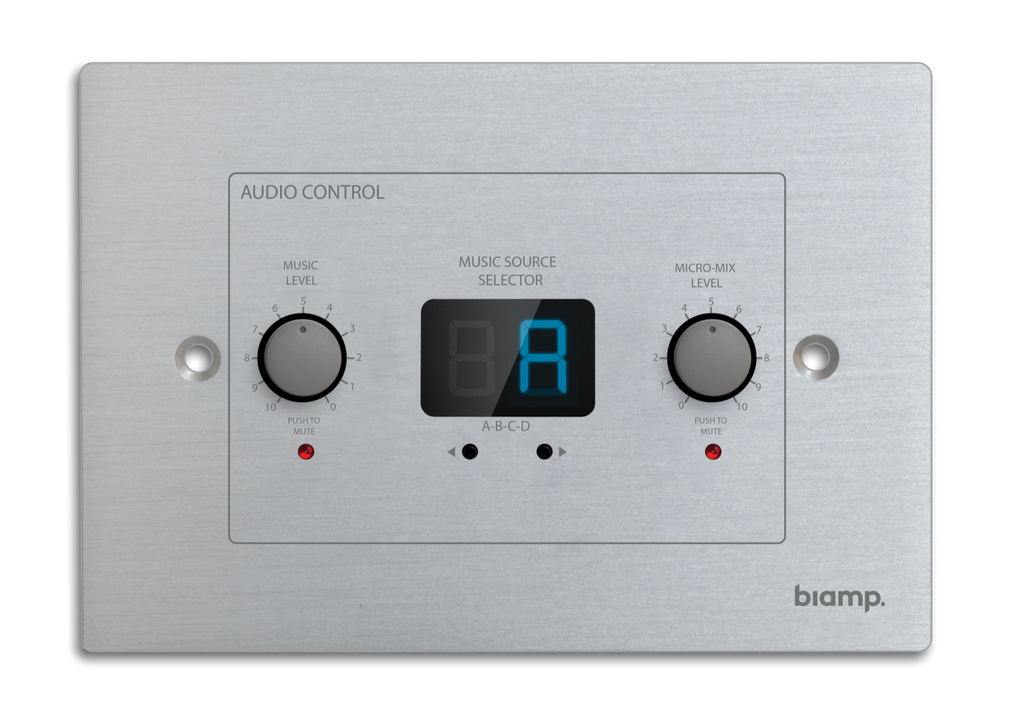

ZONE4R is a remote control panel for the ZONE4 multifunctional 4-zone preamplifier. The control panel offers music level control, source selection and microphone mix level control. A clear digital display makes it easy to monitor the functioning of the unit.
The remote panels are easy to install and are connected to the ZONE4 by a standard CAT-5 cable (or higher). Both T-568A and T-568B cable terminations can be used. The maximum approved CAT5 cable length is 100m per zone. Mounting screws are included.
The maximum ZONE4R control panels connected to a single ZONE 4 preamplifier is 8 pieces in any configuration (e.g. 2 panels x 4 zones or 8 panels x 1 zone or any other combination with a total of 8 panels). You can connect multiple ZONE4R units to the ZONE4 main unit using the RJ45 split hub.
Each controller has a unique network address. Please note that the ZONE4R panels are unique to the ZONE4 four-zone preamplifier and can't be used for controlling another preamplifier. The ZONE4R cannot be linked to a PC and is not network compatible.
Sophisticated but yet affordable: this remote control has all basic controls, is easy to install and easy to use. The combination with the ZONE4 preamplifier gives you the competitive edge to tackle even the most daunting challenges.
Specifications
| Brand | Biamp |
| Color | Grey |
| Bluetooth | No |
| POE | No |
| Dante | Nee |
| RS232 | Nee |
